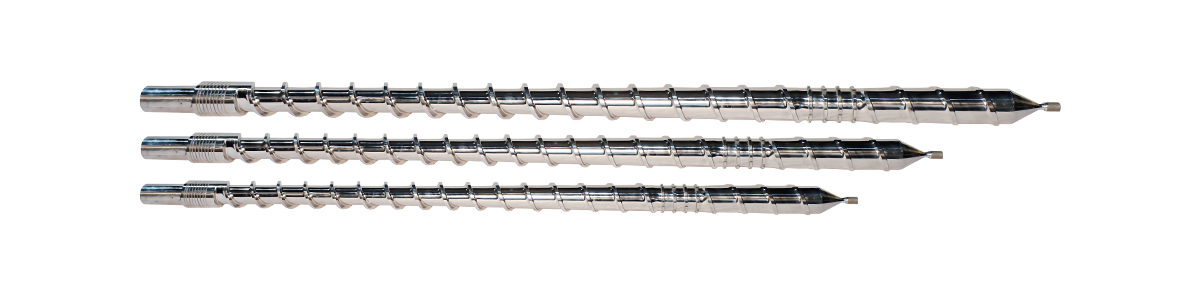

Blow Moulding Screw Barrel: Technical Guide for HDPE, PP & PVC Processing

A general-purpose screw designed with a compression ratio of approximately 3.0:1 to 3.2:1 and an L/D of 24:1 can process both standard HDPE and homopolymer PP with acceptable results. However, switching between high-MFI PP copolymers and high-density HDPE grades on the same screw will involve output and melt quality compromises. For plants with significant PP processing, a dedicated PP-optimised screw (2.8:1 – 3.0:1 compression ratio, Maddock mixer) delivers meaningfully better consistency.

PVC begins thermal degradation and HCl off-gassing above approximately 180°C — well within normal processing temperatures. A high compression ratio generates excessive shear heat in the transition zone, raising melt temperature dangerously above the degradation threshold. A low compression ratio (1.8:1 – 2.5:1) reduces shear intensity, keeps melt temperature within the safe processing window, and minimises residence time in the high-temperature zones. Screw speed is also kept low for the same reason.

A nitrided barrel has a thin hardened surface layer (0.3–0.5 mm) achieved by diffusing nitrogen into alloy steel. It is cost-effective for unfilled HDPE and PP. A bimetallic barrel has a centrifugally cast wear-resistant alloy liner (3–5 mm thick) fused to the structural steel outer shell. The thick liner provides 3–5 times the service life of a nitrided barrel in filled-compound or corrosive-resin applications. For PVC specifically, bimetallic barrels with corrosion-resistant alloy liners are strongly recommended for any serious production operation.

Key indicators include: (1) Parison weight variation exceeding ±3–5% at stable process conditions; (2) Melt pressure drop of more than 10–15% from baseline at constant screw speed; (3) Screw-to-barrel clearance (measured diametrically) exceeding 0.8–1.0 mm; (4) Surface defects — streaks, black specks, gels — appearing in output that cannot be resolved by process adjustment; (5) Unexpected increases in specific energy consumption (kWh/kg). When two or more of these are present simultaneously, a screw pull and inspection is warranted immediately.

Black specks in HDPE blow moulded parts most commonly originate from degraded polymer deposits in the screw barrel. These deposits, known as carbon-black or char, accumulate in stagnant zones — typically at the metering zone end, the breaker plate area, or around damaged screw flights. Other causes include screw barrel surface corrosion (rust particles), metal contamination from worn flight tips, or inadequate purging during material changes. A properly maintained and geometrically correct screw barrel with no dead zones is the primary preventive measure.

Pricing for blow moulding screw barrels in India varies based on screw diameter, length (L/D), material grade, surface treatment, and whether the assembly is a standard replacement or a custom-engineered design. Indicatively, a nitrided screw barrel assembly for a 60–80 mm machine may range from INR 35,000 to INR 80,000, while a bimetallic barrel for the same diameter can range from INR 70,000 to INR 1,50,000+. Large-diameter assemblies (120–200 mm) command significantly higher prices. Hi Tech Screw Barrel Works recommends requesting a quotation based on your exact machine specifications for accurate pricing.

Yes. Hi Tech Screw Barrel Works specialises in reverse-engineering and manufacturing replacement screw barrel assemblies for all major blow moulding machine brands — including Bekum, Fischer-W Mueller, SIG Corpoplast, Kautex, Jomar, and Indian OEMs. We require either the original engineering drawing or the worn screw/barrel for dimensional measurement. Our CNC machining and quality inspection systems ensure that the replacement assembly matches OEM tolerances and fits without modification.

The most impactful maintenance practices are: (1) Purging with a commercial purging compound at every shutdown and material change to prevent carbonisation; (2) Operating within the resin supplier’s recommended processing temperature and screw speed limits; (3) Monitoring and maintaining the heater band condition — uneven heating accelerates local wear; (4) Periodic clearance measurement (every 500–1,000 hours) to track wear rate and schedule replacement before catastrophic failure; (5) For PVC lines — mandatory alkaline purge after every run to neutralise HCl residue. Preventive maintenance consistently delivers 30–50% longer service intervals than reactive replacement.

A parison is the hollow tube of molten plastic extruded by the die head in extrusion blow moulding — it is the preform that is subsequently inflated by compressed air inside the mould to form the finished container. Parison quality — weight consistency, wall thickness distribution, surface smoothness, and sag resistance — is directly determined by the melt pressure, melt temperature, and viscosity consistency delivered by the screw barrel. Any instability in the screw barrel’s plastication output manifests as variation in parison weight and diameter, resulting in inconsistent wall thickness, thin spots, and increased flash in the blow-moulded part.
