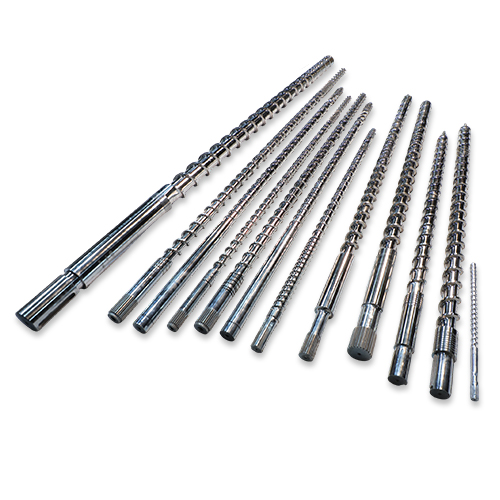

Thermo Forming Sheet Plant Screw Barrel
Thermoforming sheet plant screw barrels are essential components in thermoforming sheet extrusion equipment, designed to melt, mix, and extrude thermoplastic materials into flat sheets that can be thermoformed into various shapes. These screw barrels play a crucial role in achieving uniform melt distribution, controlled cooling, and precise thickness for different thermoforming sheet specifications.
Price of Thermo Forming Sheet Plant Screw Barrel
|
Screw Minimum Size (mm or inch) |
Screw Maximum Size (mm or inch) |
Barrel Minimum Size (mm or inch) |
Barrel Maximum Size (mm or inch) |
Minimum Price (In Rs) |
Maximum Price (In Rs) |
|---|---|---|---|---|---|
|
35mm |
150mm |
35mm |
150mm |
Rs. 50,000 |
Rs. 5,00,000 |
Benefits
Uniform Melt Distribution and Dimensional Accuracy
Thermoforming sheet plant screw barrels ensure uniform distribution of molten thermoplastic resin within the extrusion die, resulting in consistent sheet thickness and dimensional accuracy. This enhances product performance and reduces material waste.
Enhanced Durability and Wear Resistance
Our screw barrels are manufactured from high-grade materials such as nitrided steel, bimetallic alloys, and tungsten carbide coatings, offering exceptional wear resistance and extended service life. This minimizes downtime and maintenance costs.
Optimized Processing Parameters
By optimizing screw geometry and material composition, our screw barrels improve extrusion parameters such as cooling efficiency, melt homogeneity, and line speed control. This enhances production efficiency and reduces energy consumption.
Customization Options
We offer customization options to meet specific customer requirements, including screw diameter, L/D ratio, flight geometry, material composition, and surface finishes. Our engineering expertise ensures that each thermoforming sheet plant screw barrel is tailored for maximum performance and reliability.
FAQs
What is the role of a screw barrel in a thermoforming sheet plant?
The screw barrel in a thermoforming sheet plant is responsible for melting, mixing, and homogenizing plastic raw materials before extrusion. It ensures uniform heating and pressure distribution, leading to consistent sheet thickness and superior mechanical properties. A well-designed screw barrel enhances the quality of thermoformed sheets by preventing material degradation and improving extrusion efficiency.
What types of materials can be processed using a thermoforming sheet plant screw barrel?
Thermoforming sheet plant screw barrels are designed to process a wide range of thermoplastics, including PET, PP, HIPS, ABS, PVC, and PLA. The screw barrel’s geometry and surface treatment are optimized to handle different polymer viscosities and thermal properties, ensuring smooth extrusion and consistent sheet quality.
What material is used to manufacture thermoforming sheet plant screw barrels?
High-quality nitrided steel, tool steel, and bimetallic alloys are commonly used for manufacturing these screw barrels. Bimetallic coatings such as tungsten carbide or chromium enhance wear and corrosion resistance, extending the screw barrel’s lifespan, especially for high-volume production and abrasive materials.
How does the screw design impact thermoforming sheet quality?
The screw design, including its L/D (length-to-diameter) ratio, compression zone, and mixing elements, directly affects melt homogeneity, sheet clarity, and thickness uniformity. A well-optimized screw design ensures efficient plasticization, reduces material wastage, and minimizes defects like air bubbles, uneven texture, and warping.
What are common signs of screw barrel wear and when should it be replaced?
Signs of wear include reduced extrusion output, inconsistent sheet thickness, increased power consumption, and visible damage to screw flights or the inner barrel surface. If frequent process adjustments are required to maintain sheet quality, it may indicate that the screw barrel needs replacement or refurbishment.
Can the screw barrel be customized for different thermoforming applications?
Yes, screw barrels can be customized based on production requirements, including variations in screw geometry, deeper nitriding for increased hardness, and special coatings for enhanced durability. Custom screw designs help optimize melt flow and temperature distribution for specific thermoforming applications.
How can I extend the lifespan of my thermoforming sheet plant screw barrel?
Regular maintenance, using high-quality raw materials, avoiding contaminants, and maintaining optimal processing temperatures are key to extending the screw barrel’s lifespan. Periodic cleaning and lubrication also help prevent material buildup and wear. For high-volume production, using a bimetallic-coated screw barrel can significantly improve durability.
What is the typical lead time for manufacturing a thermoforming sheet plant screw barrel?
The lead time varies based on design complexity and material selection but typically ranges from 3 to 6 weeks. Custom orders with special coatings or geometries may require additional time for precision machining and quality testing.
How does a bimetallic screw barrel enhance performance in thermoforming sheet extrusion?
A bimetallic screw barrel provides superior wear and corrosion resistance, ensuring stable processing conditions and extended operational life. It minimizes downtime, improves melt consistency, and enhances sheet quality, making it ideal for high-output and continuous production environments.
Do you provide installation and technical support for thermoforming sheet plant screw barrels?
Yes, we offer complete installation guidance, troubleshooting assistance, and maintenance recommendations to ensure optimal screw barrel performance. Our after-sales support includes spare parts availability, refurbishment services, and process optimization for enhanced productivity.
