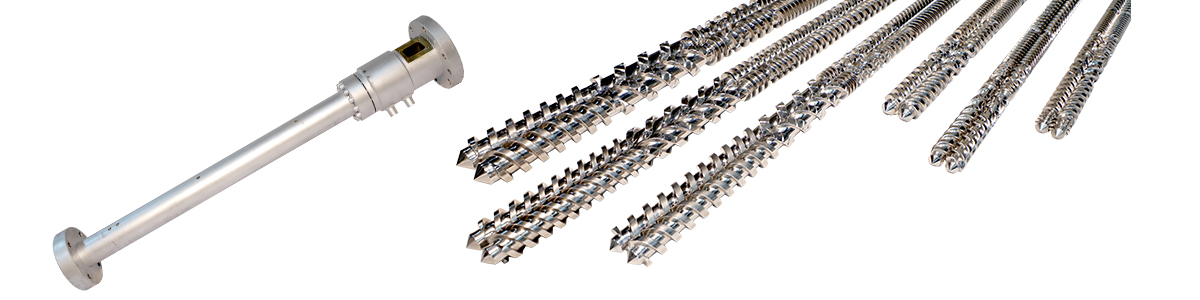

Screw Barrel Manufacturer in Vadodara

We supply four main screw barrel types: gas-nitrided single-screw barrels (standard choice for PVC, PE, PP, and ABS extrusion and injection moulding), bimetallic barrel assemblies (for glass-filled, mineral-filled, or highly abrasive compounds), hard chrome-plated barrels (for pharmaceutical packaging, food-grade, and fluoropolymer processing), and twin-screw barrel assemblies for co-rotating and counter-rotating compounders. We also manufacture the complete range of feed screws — general purpose, barrier, Maddock mixing, Dulmage, vented, and custom geometries. For Vadodara’s market specifically, bimetallic barrels are in high demand from Makarpura and Manjusar GIDC units running glass-filled automotive compounds, while nitrided barrels are the standard choice for the PVC pipe and HDPE processing units in Waghodia and Savli GIDC. We assess the best specification for each application based on the polymer being processed, filler loading, machine throughput, and acceptable service life before quoting.

Yes — OEM replacement for imported machines is one of our core competencies, and it is particularly relevant for Vadodara’s petrochemical and compounding units where European and American extruder equipment is common. We hold dimensional databases for machines from Krauss-Maffei, Davis-Standard, Battenfeld, Berstorff, Leistritz, Coperion, Windsor, and other major brands. If the machine model is in our database, we can produce a replacement without requiring a physical sample. For machines not in our database, we request either the OEM drawing or the original worn screw/barrel as a reference sample, and we complete reverse engineering within 48 hours. The finished replacement meets or exceeds original OEM dimensional tolerances and carries the same material and hardness specification as the original.

Vadodara is approximately 110 km from our Ahmedabad manufacturing facility — placing it among the closest industrial cities we serve in Gujarat. Standard gas-nitrided barrels in commonly stocked bore sizes (40mm, 50mm, 60mm, 75mm, 80mm, 90mm, 100mm) are typically ready for dispatch within 7–10 working days from drawing confirmation and advance payment. Bimetallic barrels require 14–18 working days due to the additional centrifugal casting or HIP-sintered lining process. Custom bore sizes, special L/D ratios, or twin-screw barrel assemblies are quoted on a project-specific timeline — typically 18–25 working days. For emergency production breakdown situations in Vadodara, we offer priority manufacturing slots at a premium lead time of 5–7 working days for nitrided barrels up to 100mm bore.

Screw barrel specification selection is determined by four primary variables: the polymer and filler combination you process, your machine’s throughput rate and screw RPM, your production shift pattern (continuous 24/7 vs single shift), and the acceptable service life before replacement. For unfilled PE, PP, ABS, and PVC processing, standard gas-nitrided EN 41B barrels deliver cost-effective service life. For glass-filled grades above 15% loading or mineral-filled masterbatch compounding, bimetallic barrels are the economically superior choice despite the higher upfront cost — because the extended service life (3–5x longer than nitrided in abrasive applications) more than compensates for the price premium. For pharmaceutical or food-grade applications, chrome-plated barrels are the regulatory-compliant choice. Our technical team is available to consult on your specific combination — share the polymer grade, filler percentage, machine make and model, and current barrel replacement frequency, and we will recommend the correct specification.

We manufacture all barrels and screws from EN 41B (European equivalent: 38CrMoALA / 1.8509) — a chromium-molybdenum-aluminium alloy steel specifically formulated to respond to gas nitriding with maximum surface hardness and deep case penetration. We source EN 41B exclusively from MUSCO-certified forging mills, which provide mill test certificates covering chemical composition (Cr, Mo, Al, C content), mechanical properties, and forge quality. These mill test certificates are provided to the buyer as part of our quality documentation package. Additionally, we perform incoming Vickers hardness verification on forged blanks and spectrometric spot-checks on material batches for traceability. Buyers in Vadodara can request to view these certificates at the point of order placement, and we include final hardness test data (surface HRC and case depth) in the dispatch documentation.

Our quality control protocol involves inspections at three critical gates in the manufacturing process, not just a final check before packing. The first inspection gate is pre-nitriding dimensional verification — every barrel bore diameter, length, concentricity, and flange register is measured at this point before the component enters the nitriding furnace. Components that deviate from drawing are identified and corrected at this stage when they can still be re-machined. The second gate is post-nitriding hardness testing — surface hardness and case depth at 0.2mm, 0.4mm, and 0.6mm are verified by Vickers hardness indentation for each batch. The third gate is final dimensional inspection after honing and grinding — bore diameter, bore finish (profilometer reading), OD, and concentricity are all recorded. The complete dimensional report and hardness test certificate are dispatched with the component to every Vadodara buyer, regardless of order size.

A standard nitrided barrel has a wear-resistant surface layer of 0.5–0.7mm on top of a soft alloy steel substrate. Once this nitrided layer is worn through — typically by abrasive fillers — the underlying base material wears rapidly, leading to progressive bore enlargement and loss of melt pressure. A bimetallic barrel replaces this thin nitrided layer with a 3–5mm centrifugally cast or HIP-sintered alloy lining of 60–65 HRC hardness throughout its full thickness. The bimetallic lining wears at a dramatically lower rate because the hard phase is not a thin surface treatment but the structural bulk of the bore itself. In glass-filled polymer applications typical of Vadodara’s automotive injection moulding sector, we have documented service life of 3–5 years for bimetallic barrels versus 12–18 months for standard nitrided barrels — making the bimetallic barrel the lower total cost option despite its higher purchase price.

Yes — custom screw geometry design and manufacture is a standard part of our service offering. We design and manufacture barrier screws (Maddock, Egan, and custom barrier geometries), high-shear mixing screws, low-shear gentle-processing screws for heat-sensitive materials, vented screws with devolatilisation zones, and screws with multiple compression ratios for multi-stage processing. For Vadodara’s specialty compounding units in the Nandesari and Savli GIDC areas, we have designed screws for reactive extrusion processes, high-viscosity engineering polymer compounding, and masterbatch dilution lines where standard general-purpose screw geometry is not optimal. Custom screw design requires the following inputs: polymer type and grade, processing temperatures, output rate target, machine bore diameter and L/D, and the specific process challenge being addressed. We provide a design drawing for review and approval before committing to manufacture.

The most reliable early indicator of screw barrel wear is a measurable drop in output rate at constant screw speed and melt temperature — this indicates that the bore-to-screw clearance has increased, reducing forward melt pressure and allowing back-leakage across the screw flights. Other indicators include increased melt temperature variation across the barrel zones (caused by inconsistent heat transfer through a worn bore), pressure gauge fluctuation at the screw tip or die adapter, and dimensional changes in the final product (wall thickness variation in pipes or film, weight variation in injection moulded parts). For Vadodara’s PVC pipe extrusion lines, a drift in pipe wall thickness outside IS:4985 tolerance limits often precedes a measurable bore wear finding. We recommend periodic bore diameter measurement (mic-and-plug gauge method) every 6 months for high-abrasive compound lines. Our service team can advise on the measurement procedure and interpretation.

Yes — twin-screw barrel assemblies (both co-rotating and counter-rotating configurations) are part of our product range. Co-rotating twin-screw barrels are used in high-throughput compounding lines such as the polymer compounders operating in Nandesari GIDC, while counter-rotating twin-screw barrels are the standard for PVC pipe and profile extrusion. We manufacture twin-screw barrel segments, lining plates, and complete barrel assemblies to match Coperion ZSK, Leistritz, KraussMaffei Berstorff, and Indian-brand twin-screw compounder platforms. Twin-screw element sets (kneading blocks, conveying elements, mixing elements) are also manufactured from powder metallurgical hard-phase steel for maximum wear resistance in highly filled compound processing applications at Vadodara’s compounding facilities.

Yes — domestic replacement of imported screw barrels is a core application for our products, and we design this specifically to eliminate machine downtime risk. Our process begins with a drawing review or sample measurement to confirm dimensional fit with the machine’s barrel mounting and coupling arrangements. We then manufacture to those exact dimensions — including flange bolt circle diameter, spigot fit diameter, register bore depth, and feed port position — ensuring that the replacement drops into the machine without any adaptation required. For Vadodara units that have been purchasing imported screw barrels at 12–16 week lead times and significant import cost, our domestic equivalent reduces lead time to 10–21 days and eliminates import duty — without compromising technical performance. We provide a dimensional conformance report with each domestically manufactured replacement barrel to support the plant’s changeover documentation.

A bimetallic barrel typically costs 2.0x–2.8x the price of an equivalent nitrided barrel in the same bore size and L/D. The correct comparison is not price-to-price but cost-per-hour-of-productive-running. For an abrasive-compound application in Vadodara running glass-filled PA66 on 6-day week continuous shifts: a nitrided barrel may deliver 12–18 months of service before requiring replacement, while a bimetallic barrel delivers 3–5 years. The production downtime for a barrel change-out — including machine stoppage, barrel cooling, extraction, new barrel installation, heat soak, and re-qualification of first-off parts — typically represents 16–24 hours of lost production time per change-out event. Multiplied by the frequency difference, the bimetallic barrel eliminates 2–4 change-out events over its lifetime, often fully paying back its price premium within the first year of operation. We can model the cost comparison for specific Vadodara applications on request.

Non-standard bore sizes and special flanges are routine for us — we manufacture custom screw barrels from bore sizes as small as 20mm up to 300mm in any increment, and we can machine any flange configuration including DIN standard flanges, ANSI flanges, custom bolt circle patterns, and proprietary OEM flange designs. We require either a detailed dimensioned drawing or — for physical samples — a measurement session with our engineering team to capture the full geometry. For Vadodara units with bespoke or modified machine configurations (a common situation with older Indian-manufactured machinery that has been re-bored or reflanged over its service life), we manufacture to the actual modified dimensions rather than the original OEM drawing, ensuring a direct fit to the machine’s current configuration. Lead time for non-standard configurations is quoted individually but typically adds 3–5 working days over our standard schedule.

Precision bore surfaces are susceptible to contamination and mechanical damage in transit — a problem that can invalidate thousands of rupees of manufacturing investment. Our standard packing protocol for all screw barrels above 60mm bore diameter is: bore packed with rust-inhibiting VCI foam wrapped around the full bore ID, followed by end-cap sealing; exterior OD surfaces wrapped in VCI poly film and foam sheet; the complete assembly then placed in a wooden crate with foam blocking on all sides to prevent contact with the crate walls. For screws, the OD ground surfaces are wrapped in VCI film and the component is suspended in foam inside a PVC pipe sleeve before crating. All packages are marked with orientation and handling instructions and shipped via dedicated goods transport to Vadodara. Barrels above 250mm bore or 3000mm length are shipped on custom wooden skids with through-bolt tie-downs.

Getting a quotation from us is straightforward. For the fastest turnaround, share the following details in your initial inquiry: machine make and model (or OEM drawing if available), barrel bore diameter and barrel working length, screw diameter and screw working length, L/D ratio, the polymer type and filler percentage you process, and the preferred specification (nitrided, bimetallic, or chrome-plated). You can send this information to us via the contact details at the bottom of this page, including email or phone. If you have a worn barrel or screw to replace and no drawing is available, you can courier the component to our Ahmedabad facility — we measure and return the component along with a quotation within 48 hours. For Vadodara buyers with ongoing or repeat requirements, we offer vendor registration and periodic pricing agreements that lock in lead times and reduce per-order administrative friction.
